Specification
The Mevo Studio app has the ability to add basic graphics overlays such as lower thirds, over-the-shoulder graphics, and corner bugs. Once you design your image, you will need to add it to your mobile device's camera roll in order to add it to your overlay. Please note that if you wish for your image to be transparent, you must design it as such before you upload it using the Mevo mobile app; you cannot edit an image's opaqueness within the Mevo app.
The Mevo Studio app supports PNG and JPEG files and we recommend the following resolutions:
- Corner Bug: 180x180 pixels - This is typically meant for displaying a small logo or icon in a corner of the screen.
- Lower Thirds: 624x352 pixels - These get their name from their position on the screen, the bottom third. These are ideal for identifying people and places.
- Over-The-Shoulder: 1920x1080 pixels - These are commonly used in TV newscasts when an anchor reads a story. These are larger images on either side of the screen meant to be displayed to enhance a presentation, such a graph or illustration pertaining to the content.
- Full Screen: 1920x1080 pixels - This graphic will overlay the entire picture and is ideal for slates during inactivity or slides in a presentation.
Image Transparency: All images that require transparency must be over 400x400 pixels in size and in .PNG format on iOS.
Configuring

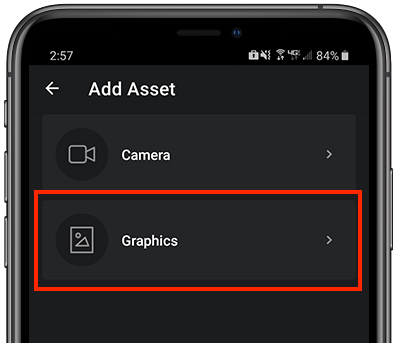

You can access graphics menu by selecting the picture icon or to add a new graphic, select the blue " + " icon on the bottom left hand side.
Then select GRAPHICS

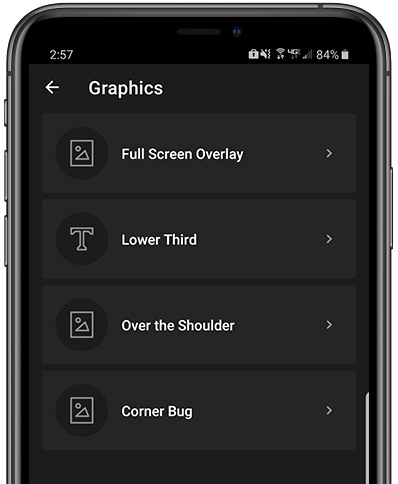

Inside the Graphics Menu you will see the graphic types

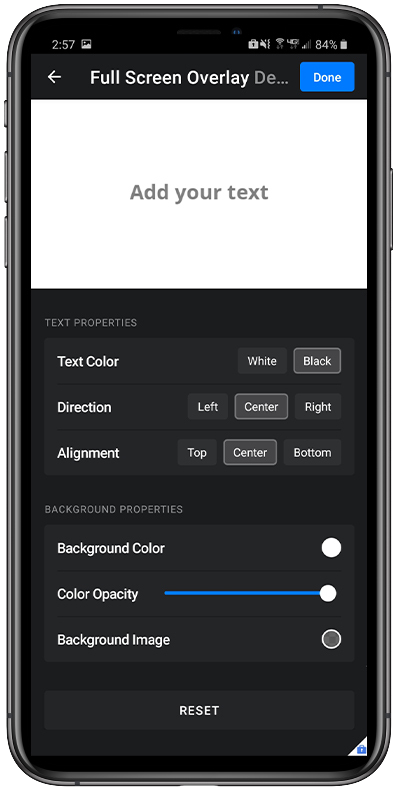

Full Screen
This allows you to add a custom overlay that fills up the entire screen.
Text properties:
Text Color - White or Black
Direction - This aligns the text to the Left, Center, or Right of the screen
Alignment - This aligns the text to the Top, Center, or Bottom of the screen
Background Properties:
Background Color - Change the color of the overlays background.
Color Opacity - Adjust the opacity of the overall overlay
Background Image - Add your own image to the background

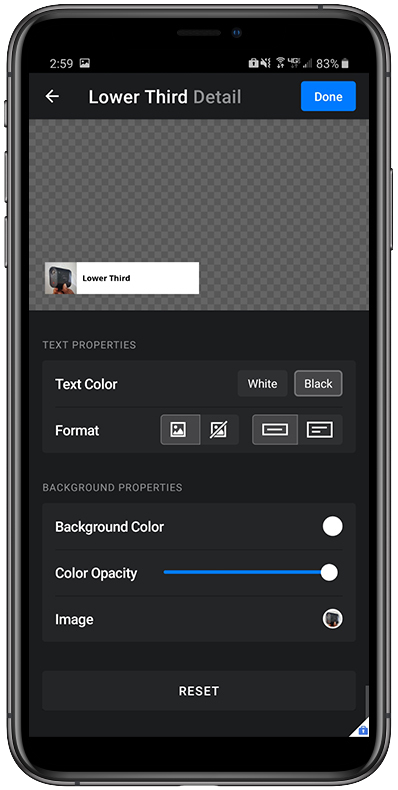

Lower Third
This allows you to add a custom overlay in the lower left hand corner of the screen. You can have a title w/ subtitle and a picture.
Text properties:
Text Color - White or Black
Format - Add an additional image to your lower third and/or add a subtitle
Background Properties:
Background Color - Change the color of the overlays background.
Color Opacity - Adjust the opacity of the overall overlay
Image - Add your own custom image to the lower third

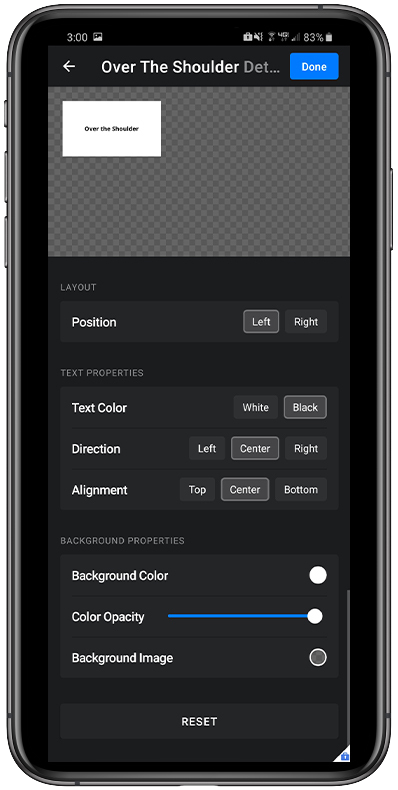

Over the Shoulder
This allows you to add a custom overlay in the top left or right hand corner of the screen.
Position - Choose to put the overlay on the Left or Right side.
Text properties:
Text Color - White or Black
Direction - This aligns the text to the Left, Center, or Right of the screen
Alignment - This aligns the text to the Top, Center, or Bottom of the screen
Background Properties:
Background Color - Change the color of the overlays background.
Color Opacity - Adjust the opacity of the overall overlay
Background Image - Add your own image to the background

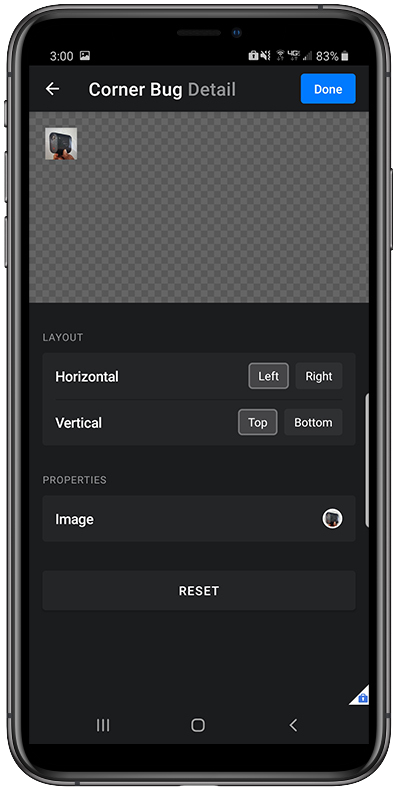

Corner Bug
This allows you to put a custom Icon on any corner of the screen
Horizontal - Choose which side Left or Right
Vertical - Choose Top or Bottom
Properties:
Image - Pic your custom Image

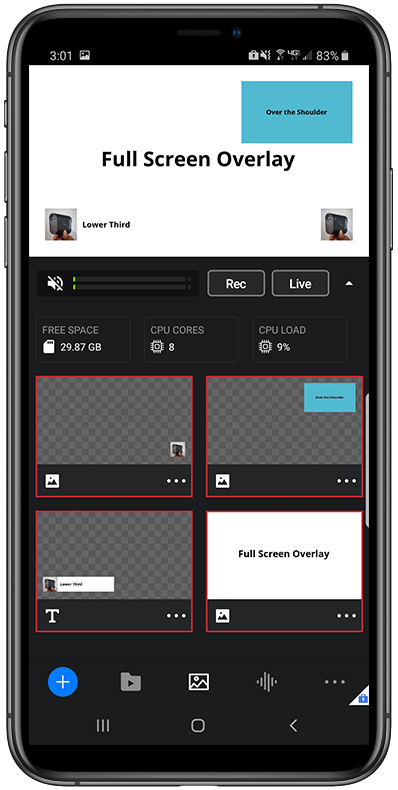

To select a graphic simply tap on it. You will see a Turquoise border around the graphic to indicate it is active. To deselect, simply tap again.
Tip:
When using multiple graphic layers, which ever graphic is selected first will be considered the bottom.
