Mounting to a Stand or Tripod

Mevo cameras come with an adapter adapter on the bottom of the camera (Start) or mount (Plus/1stGen).

Image_from_iOS.jpg Mounting_Mevo_to_Tripod_04.png

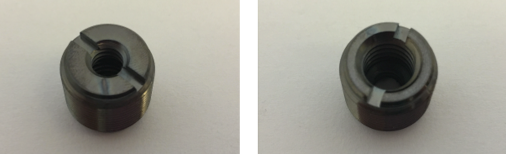

One side of the adapter is a 1/4"-20 UNC tripod thread, and the other side is a larger 3/8"-16 microphone stand thread. The mount also has a built-in 5/8"-27 microphone stand thread.


      1/4"-20 UNC tripod thread                   3/8"-16 microphone stand thread

Once you attach the camera to the included mount, you can attach it to most standard microphone stands or tripods using the adapter on the bottom of the mount.

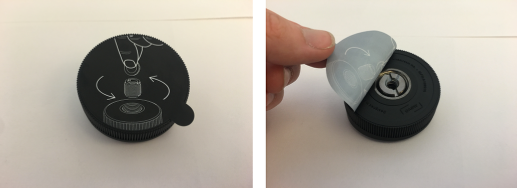

First, remove the label from the bottom of the mount.

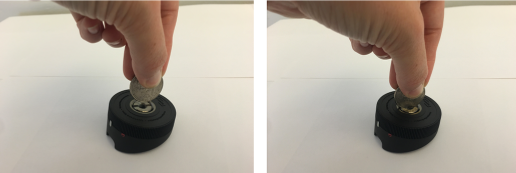

To remove the adapter, use a coin or a flat-head screwdriver and turn it counter-clockwise.

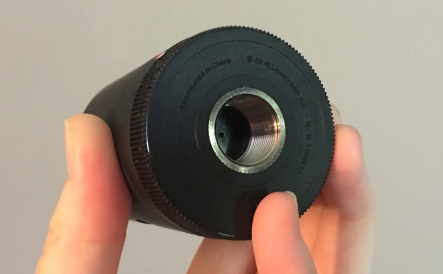

Determine which thread fits your stand or tripod. If you need to use one of the threads on the adapter, ensure that the needed thread is on the bottom and screw it into the bottom of the mount until it is secure.

The Mevo Stand sold at Mevo.com fits the built-in 5/8"-27 microphone stand thread on its own. If you're using the swivel mount included with the stand, attach the mount adapter to the mount with the 1/4" thread facing outward.

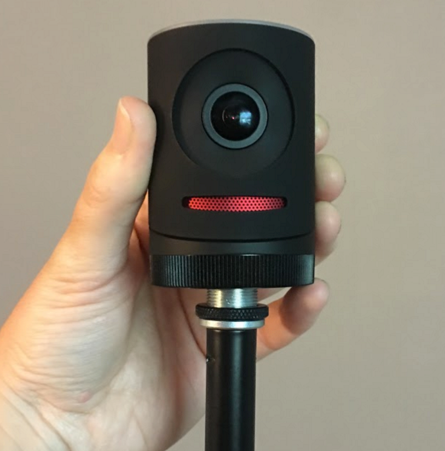

Place the camera on top of your stand or tripod and turn it clockwise until it is secured.
