Create a Full Screen Graphics Overlay

You can create a full-screen graphics overlay with the Mevo. These graphics take over the entire screen and are ideal for pre- and post-event slates or slides during a presentation.

To access this feature, you must have a Vimeo Producer or Vimeo Premium plan; learn how to subscribe here. You will also need a supported microSD card inserted into your Mevo camera.

First, be sure you are running Mevo app version 1.9 or later.

In the live edit view, tap the graphics overlay icon in the bottom right corner.

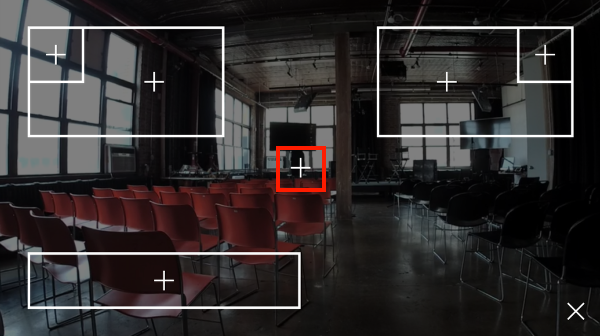

Tap the + in the middle of the screen.

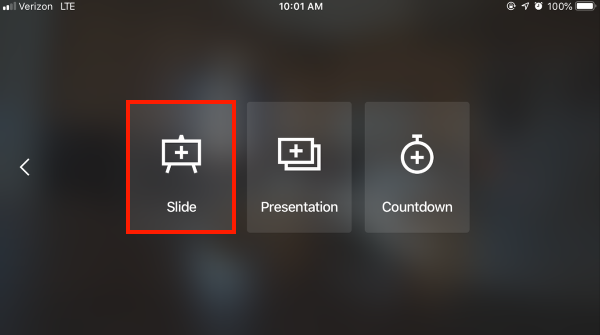

You can choose between a single slide, a presentation, and a countdown. For a basic full-screen graphic, select Slide.

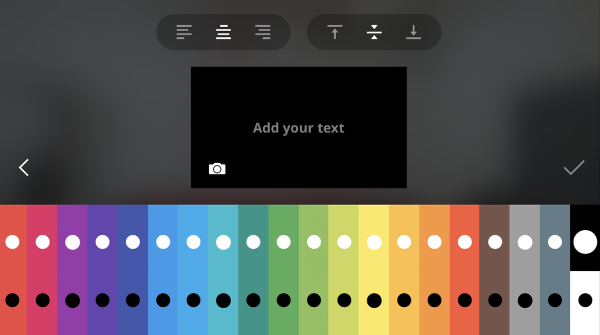

Design your full-screen graphic. You can have a solid color with text or tap the camera icon to choose a background image from your device's camera roll.

If you choose a photo, you may have to crop it to fit a 16:9 screen properly. You can also rotate it up to 45 degrees in either direction.

Tap the checkmark on the right side when you are done adjusting your image.

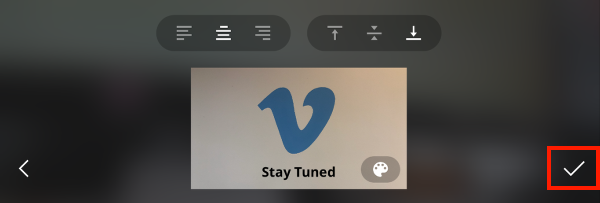

You can use the formatting options at the top of the screen to position your text as needed. When your overlay is designed as desired, tap the checkmark on the right side to save it to your microSD card.

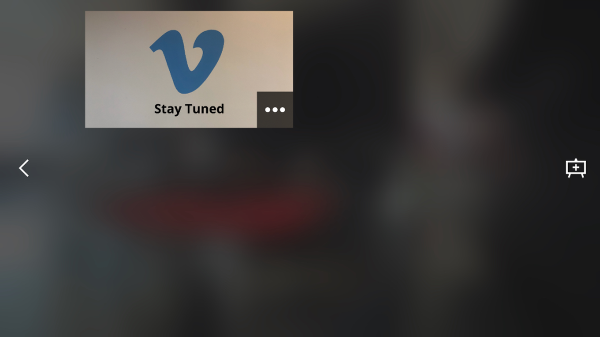

Once your full screen has finished uploading, tap it to select it.

To push it out to your program output, tap the checkmark in the lower right corner.

The full screen will be visible in your live program output monitor.

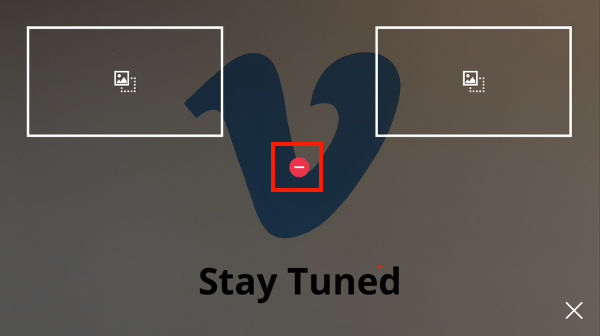

To remove the graphic, tap the graphics icon in the lower right corner to return to the graphics selection screen. Tap the red - icon in the middle of the screen.

Then tap the checkmark that appears in the lower right corner to remove the full screen from your program output.
