Mevo Studio allows you to Stream and Record simultaneously. Each resolution and bitrate can be independently set.
- Record Program to Mobile Device
- ISO Recording (Isolated Recording: Each camera records to it's own SD Card)
- Live Stream

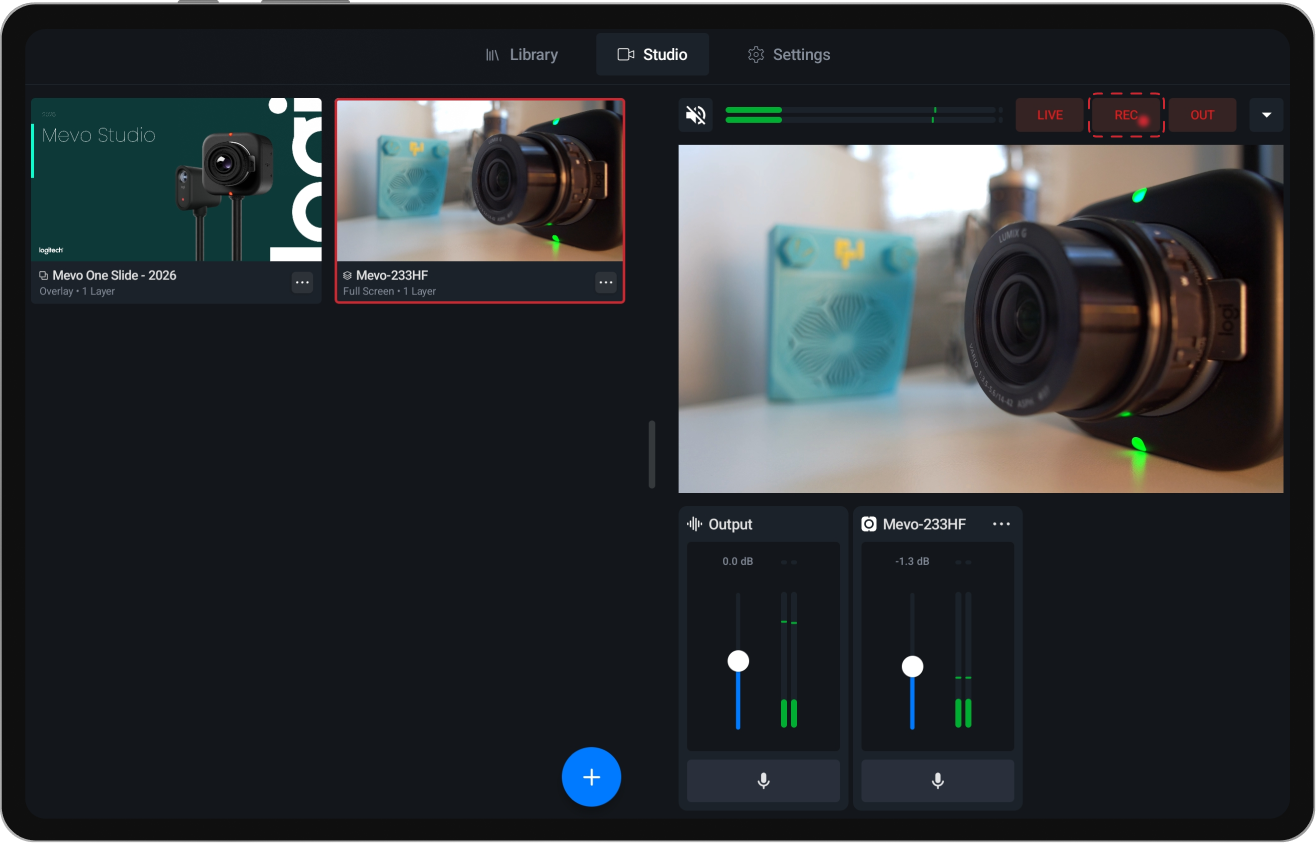

Record Program to Mobile Device
Make sure you mobile device has enough storage. The available storage will be shown in the record tab along with options to recording to external storage devices like SD Cards (Android) and hard drives (iOS).

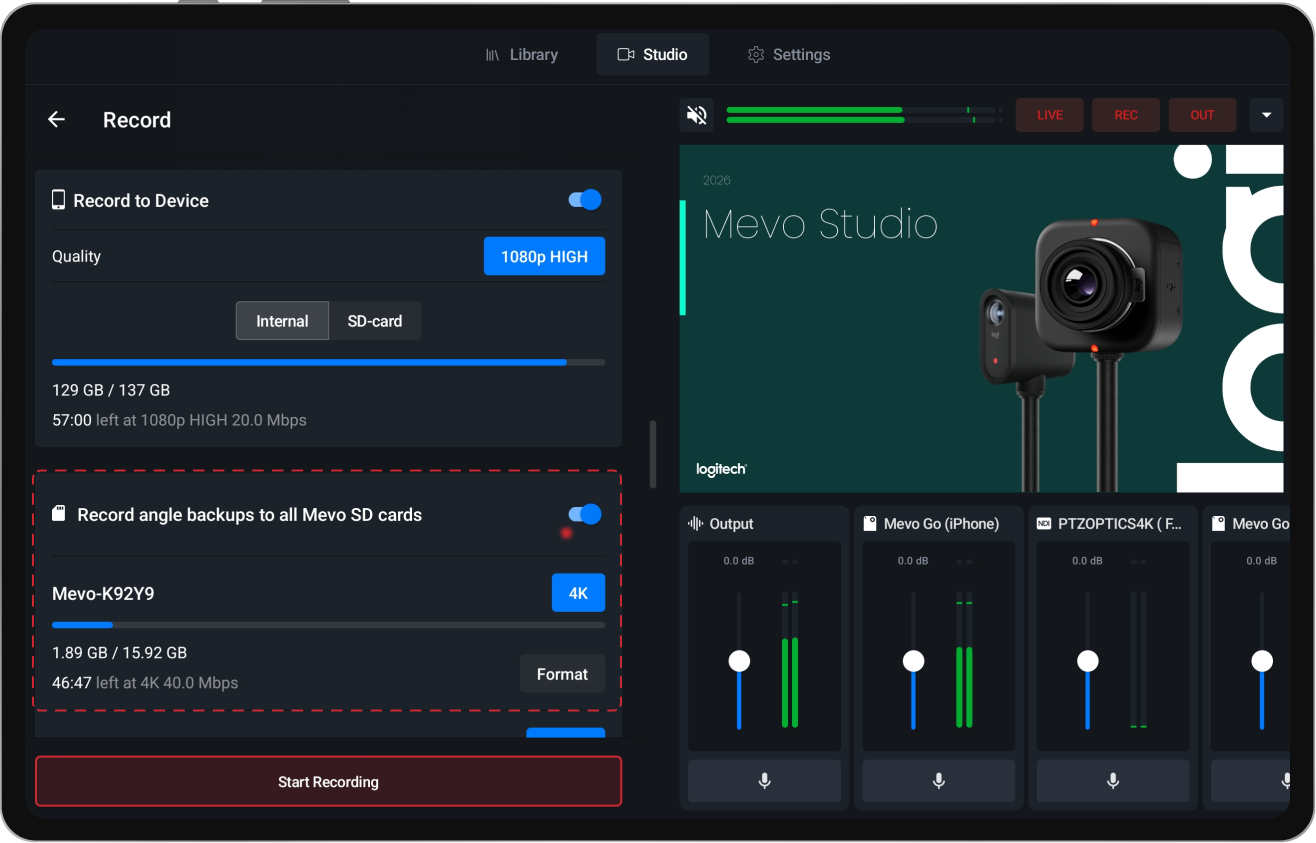

ISO Recording (to camera SD Cards)
ISO recording allows you to have high quality backup recordings of each camera angle for re-editing or archiving. You must have an SD Card installed the camera for this to function. If there are SD Cards installed, you'll see the "Record angle backups to all Mevo SD cards" option within the recording tab. You'll also be able to change the resolution and bitrate that best suits yours situation.
Live Stream
Internet Upload Speed: A fast upload speed is essential for a quality broadcast. Check your speed at www.speedtest.net on the same network you’ll use for streaming. Speeds can vary due to network congestion, especially on 4G/LTE or shared Wi-Fi. Test multiple times, including during peak usage, to get accurate results.
Mevo Pro: For streaming to multiple destinations simultaneously, consider the Mevo Pro, which streams to 10 destinations using the bandwidth of a single stream.
Upload Bitrate Recommendation: We recommend a minimum upload speed of 5-10 Mbps, ideally on a dedicated network. Use the Ethernet adapter or the Mevo Power over Ethernet adapter for the most stable connection.
Choose a streaming quality with a bitrate about half your upload speed to ensure stable performance rather than pushing your connection to its limits.
Bitrate Estimates: Below is an estimate of data usage per minute for different streaming qualities.
| Quality | Min-Max Bitrate | Est. Data Usage(GB/hr) |
|---|---|---|
| 360p | 0.3 - 1 Mbps | .13 - .44 GB |
| 1080p | 1.2 - 6 Mbps | .55 - 2.65 GB |
| 720p | 0.7 - 2 Mbps | .30 - .88 GB |
| 480p | 0.4 - 1.5 Mbps | .18 - .66 GB |
Selecting your streaming quality

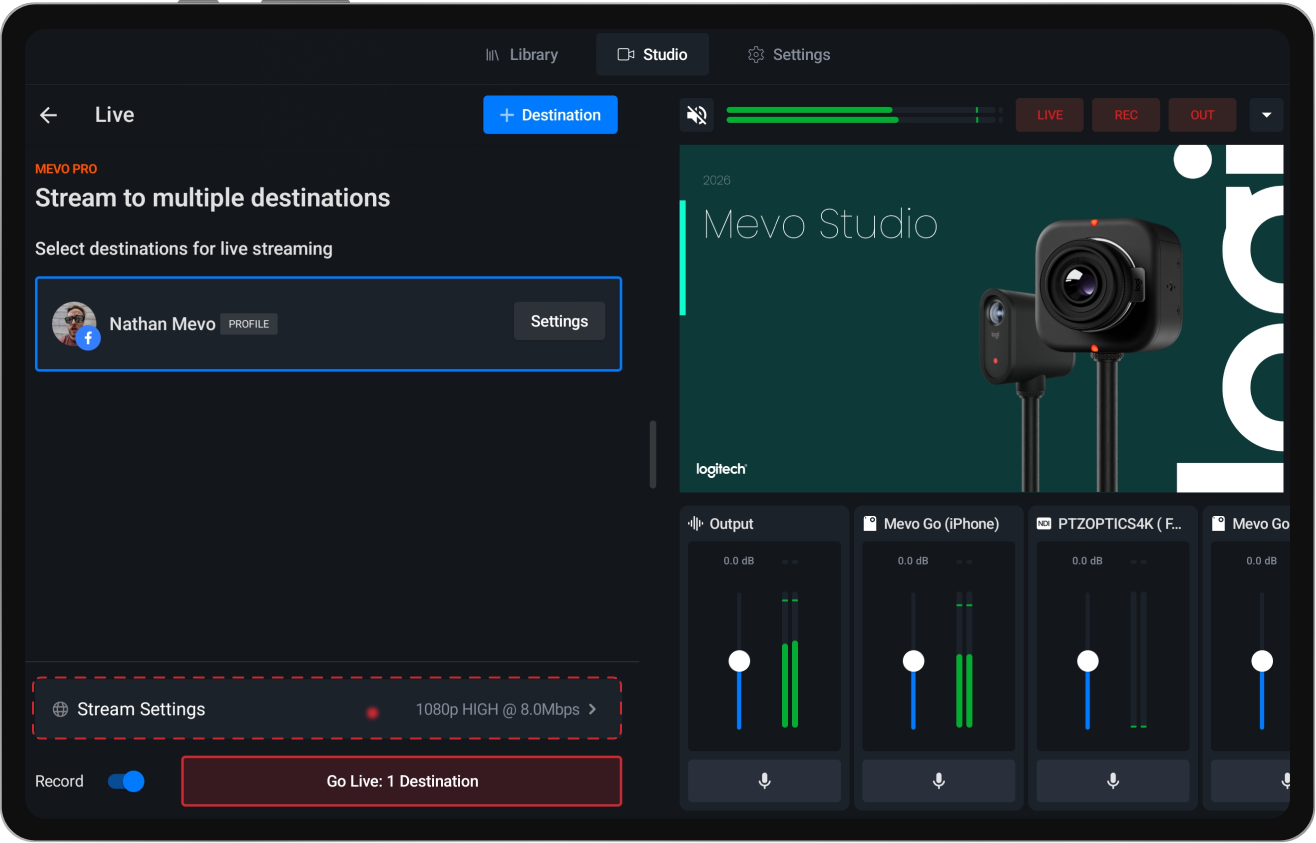

- In Studio, tap the Live button. To configure the quality, you need to have a destination loaded.

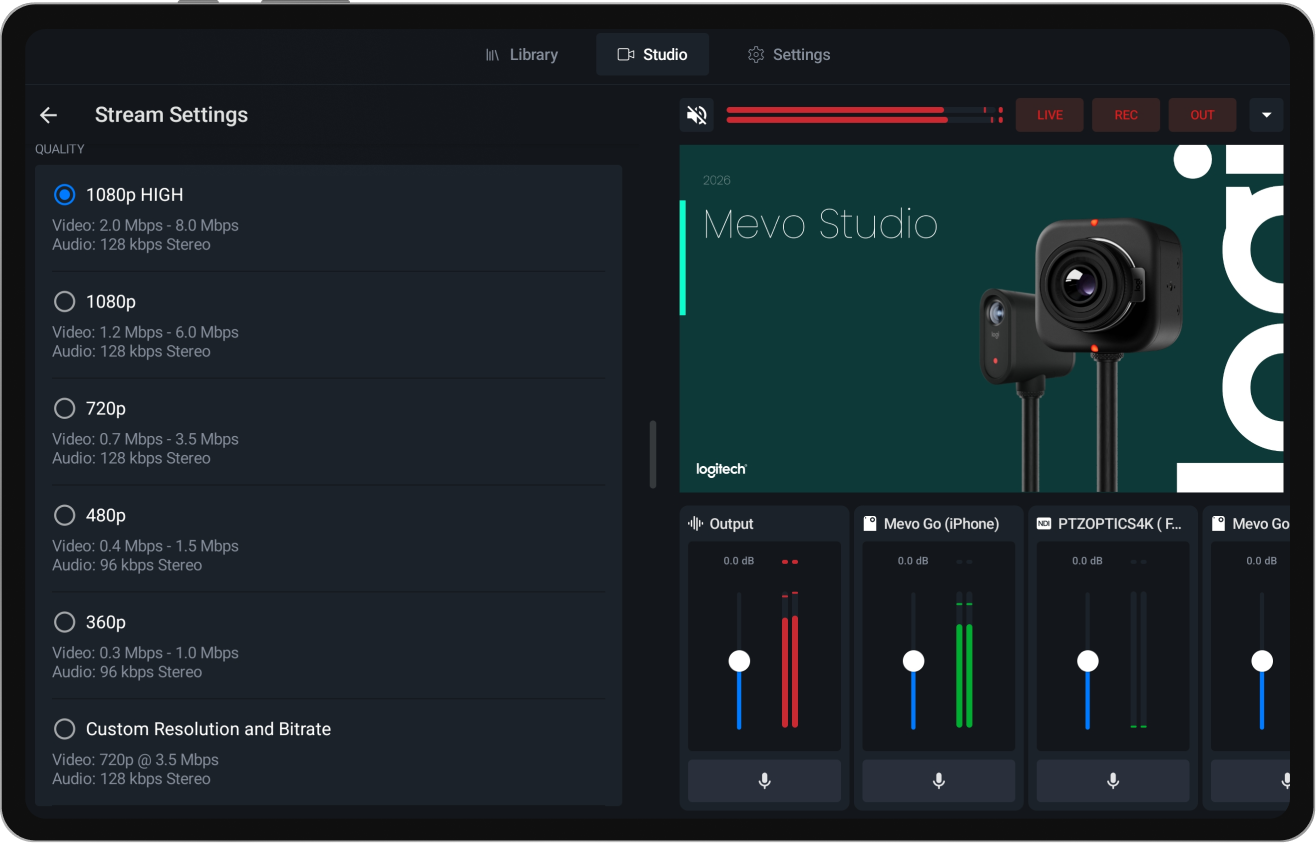

- Tap the Stream Settings to change the resolution and bitrate.

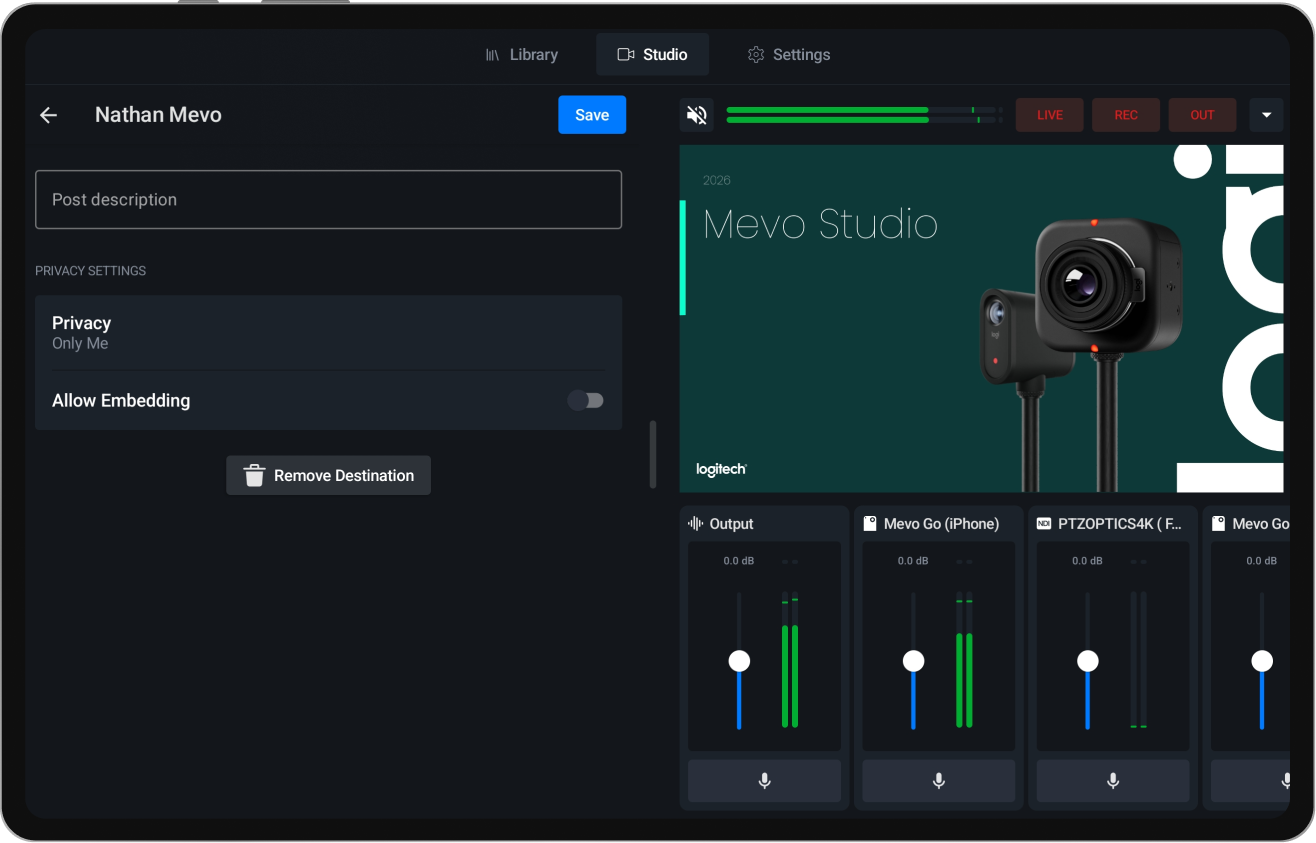

- You can also modify your destination settings.
